Dimensions
Width: 30.81" (78.3 cm)Height: 5.01" (12.7 cm)Depth: 22.18" (56.3 cm)
Shipping Dimensions
Width: 35" (88.9 cm)Height: 9" (22.9 cm)Depth: 25" (63.5 cm)
Weight
46.00 lbs (20.9 kg))
Key Features:
- Even-Heat Technology
- 10" Even-Heat Elements with Even-Heat Simmer
- 9"/12" Double-Ring Round Element
Even-Heat Technology
Even-Heat technology maintains a constant supply of power without hot or cool spots.
10" Even-Heat Elements with Even-Heat Simmer
Get more versatility for high and low temperature cooking techniques. This burner delivers a range of heat settings for soups, sauces and stews galore.

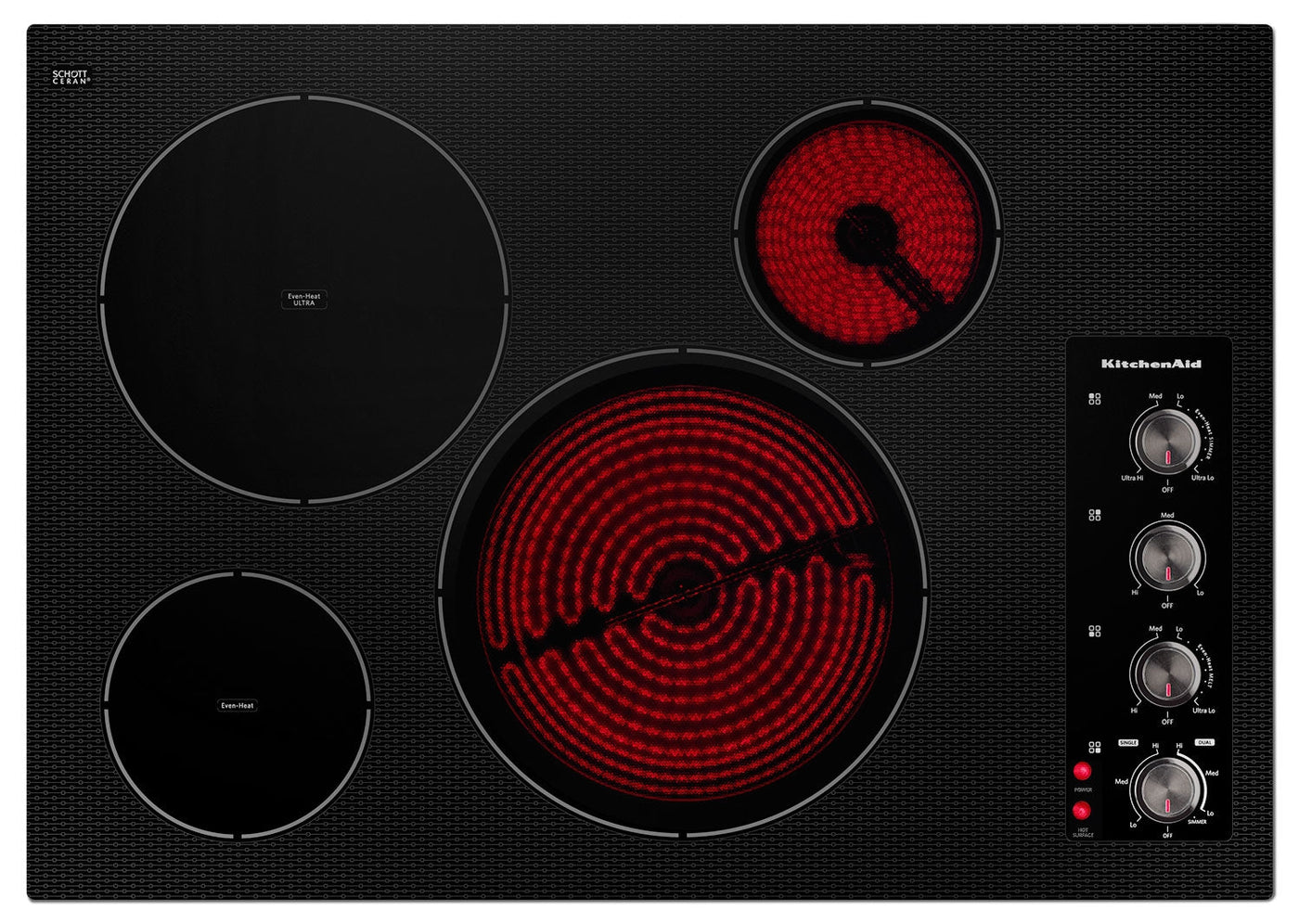

9"/12" Double-Ring Round Element
Use different cookware sizes on a single burner. When using large, 12" cookware, the entire burner is used. For smaller cookware, you'll use only the 9" inner element.
Full Features and Specifications
Configuration and Overview:
- Cooktop Type: Standard
- Burner or Element Style: Radiant
- Size: 30"
- Number of Elements: Four
- Installs Over Built-In Oven: Yes
- Surface Material: Ceramic Glass
Cooktop Features:
- Right Front Size: 12"/9"
- Right Front Power: 3,000 W/1,900 W
- Left Front Power: 1,300 W
- Right Rear Size: 6"
- Right Rear Type: Single
- Right Front Type: Dual
- Left Front Type: Single
- Left Rear Type: Single
- Left Rear Power: 3,200 W
- Right Rear Power: 1,200 W
- Left Rear Size: 10"
- Left Front Size: 6"
Controls:
- Hot Surface Indicator Light: Yes
Additional Dimensions:
- Cutout Height 5.5"
- Cutout Width 29.5"
