Dimensions
Width: 29.75" (75.6 cm)Height: 6" (15.2 cm)Depth: 21.38" (54.3 cm)
Shipping Dimensions
Width: 34.75" (88.3 cm)Height: 11" (27.9 cm)Depth: 26.38" (67.0 cm)
Weight
46.00 lbs (20.9 kg))
Key Features:
- Control Lock Capability

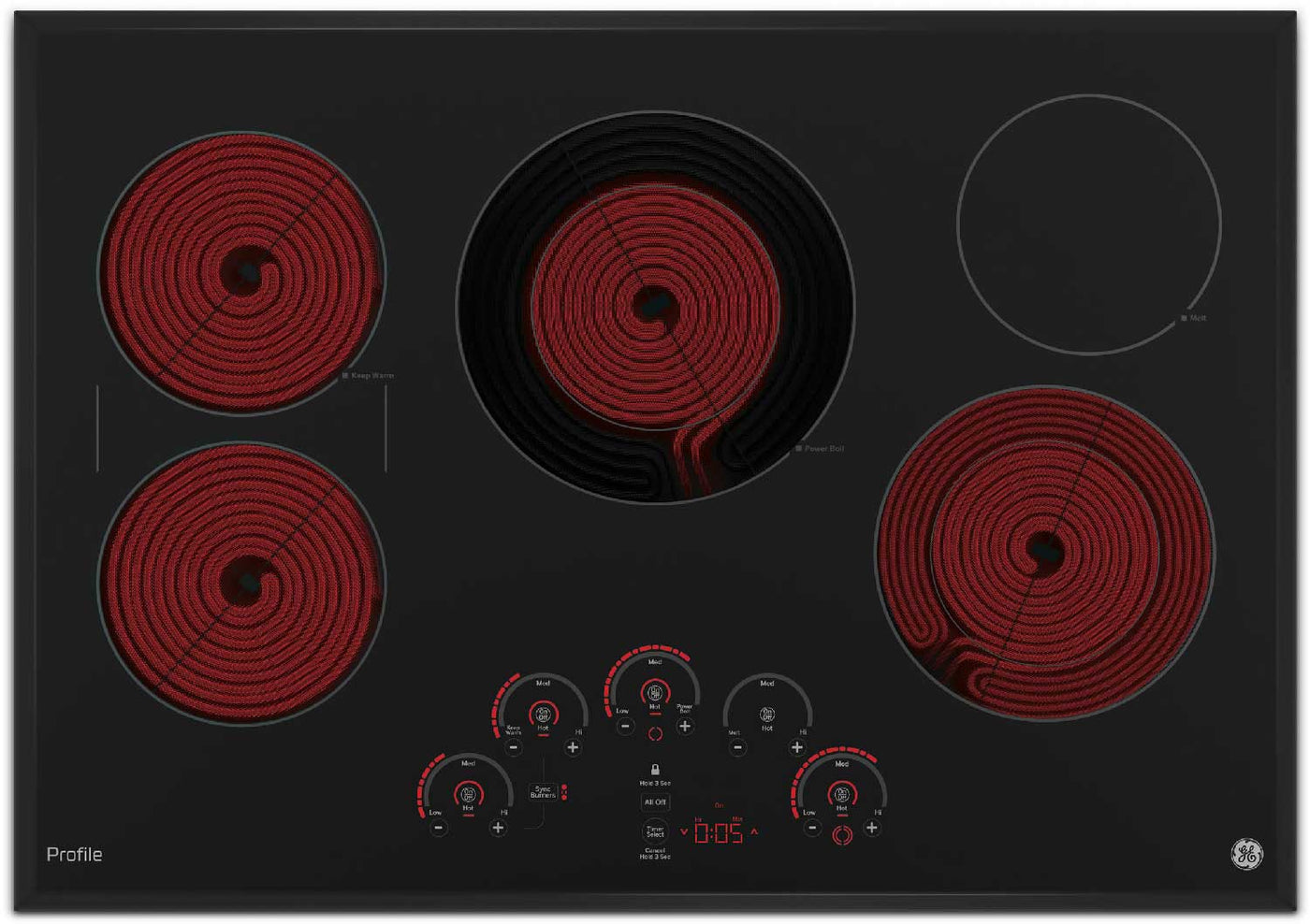

- Five Hot Surface Indicator Lights
- Multi-Element Timer
- Melt Setting
- Electronic Touch Controls
Control Lock Capability
Now you have the ability to lock the cooktop's controls, helping protect from unintended activation.
Five Hot Surface Indicator Lights
Each heating element has its own "hot surface" indicator light. These five lights let you know which element is too hot to touch, even after the element has been turned off.
Multi-Element Timer
Manage up to five pans at once with individual timers for each element.
Melt Setting
Gently melt delicate foods without burning or scorching them.
Electronic Touch Controls
Enjoy easy point-and-cook convenience. This cooktop delivers accurate control to ensure even heating and less temperature variation.
Full Features and Specifications
Accessories:
- Optional Filler Trim Kit: JXTR32B
Appearance:
- Colour Appearance: Stainless Steel on Black
- Flush-Mount Capable: Yes
- Frame Colour/Material: Stainless Steel
Features:
- Control Location: Front Centre
- Control Lock Capability: Yes
- Control Panel: Integrated
- Control Type: Electronic Touch
- Cooktop Surface: Black Ceramic Glass with Stainless Steel Trim
- Cooktop Type: Smoothtop
- Element - Centre: 6"/9" 3100 W Power Boil
- Element - Left Front: 7" 1500 W
- Element - Left Rear: 7" 1500 W
- Element - Right Front: 5"/8" 2200 W
- Element - Right Rear : 6" 1200 W
- Element Type: 4 Ribbon
- Fuel Type: Electric
- GE Fits! Guarantee: Yes
- Heating Element "ON" Indicator Light: Yes
- Hot Surface: 5
- Keep Warm Setting: Yes
- Kitchen Timer: Yes
- Melt Setting: Yes
- Setting Level Indicators: Yes
- Sync Burners Capability: Yes
Power and Ratings:
- Amp Rating at 208 V: 39.6
- Amp Rating at 240 V : 39.6
- KW Rating at 208 V: 8.2
- KW Rating at 240 V: 9.5
Additional Dimensions:
- Approximate Shipping Weight: 46 lb.
- Cooktop Width: 30"
- Cut-Out Dimensions: 28.5" W x 19.63" D
