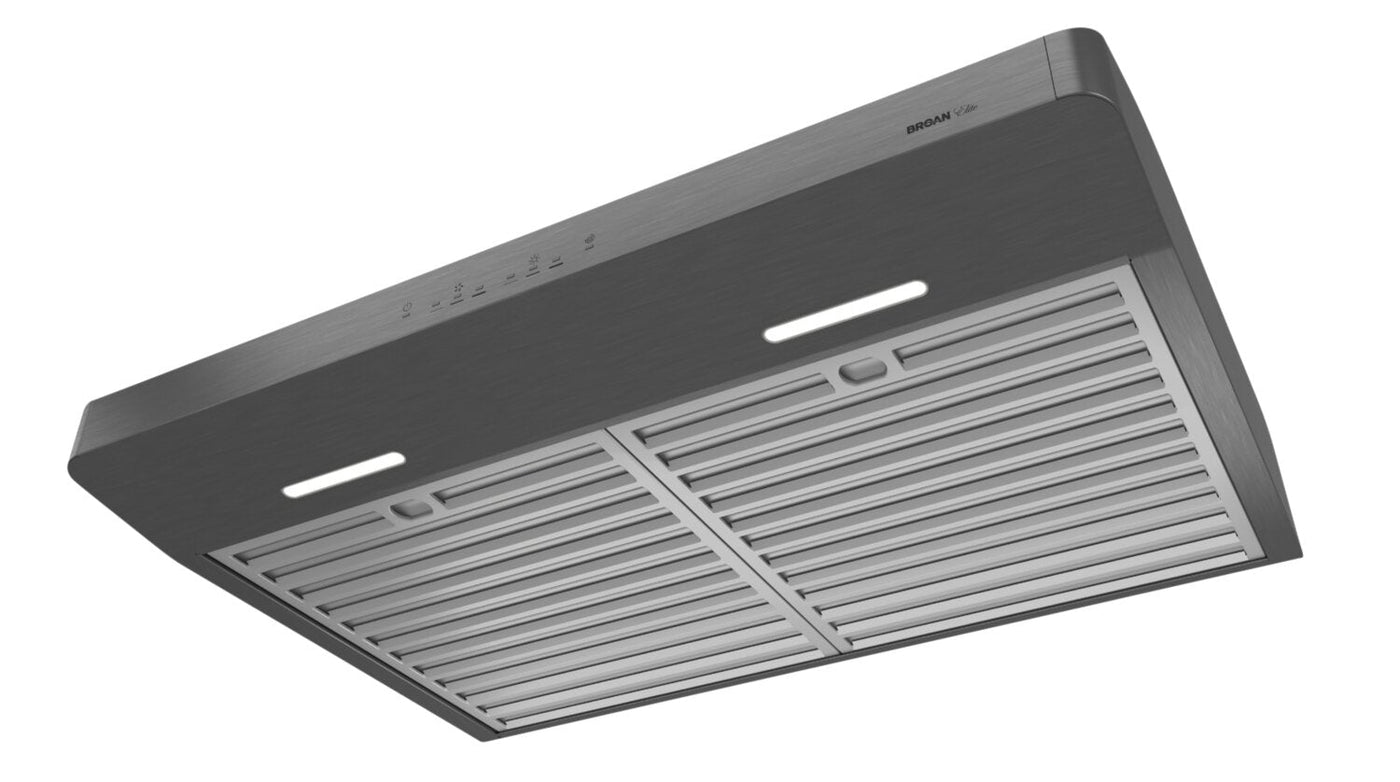

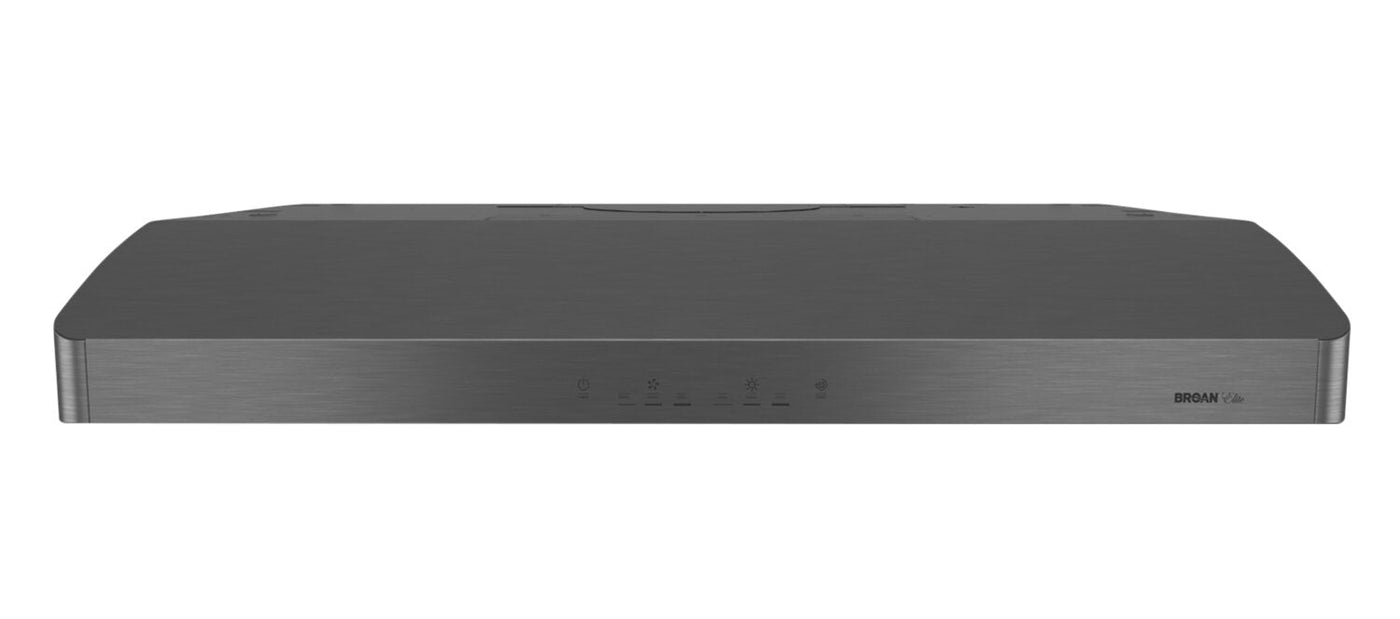

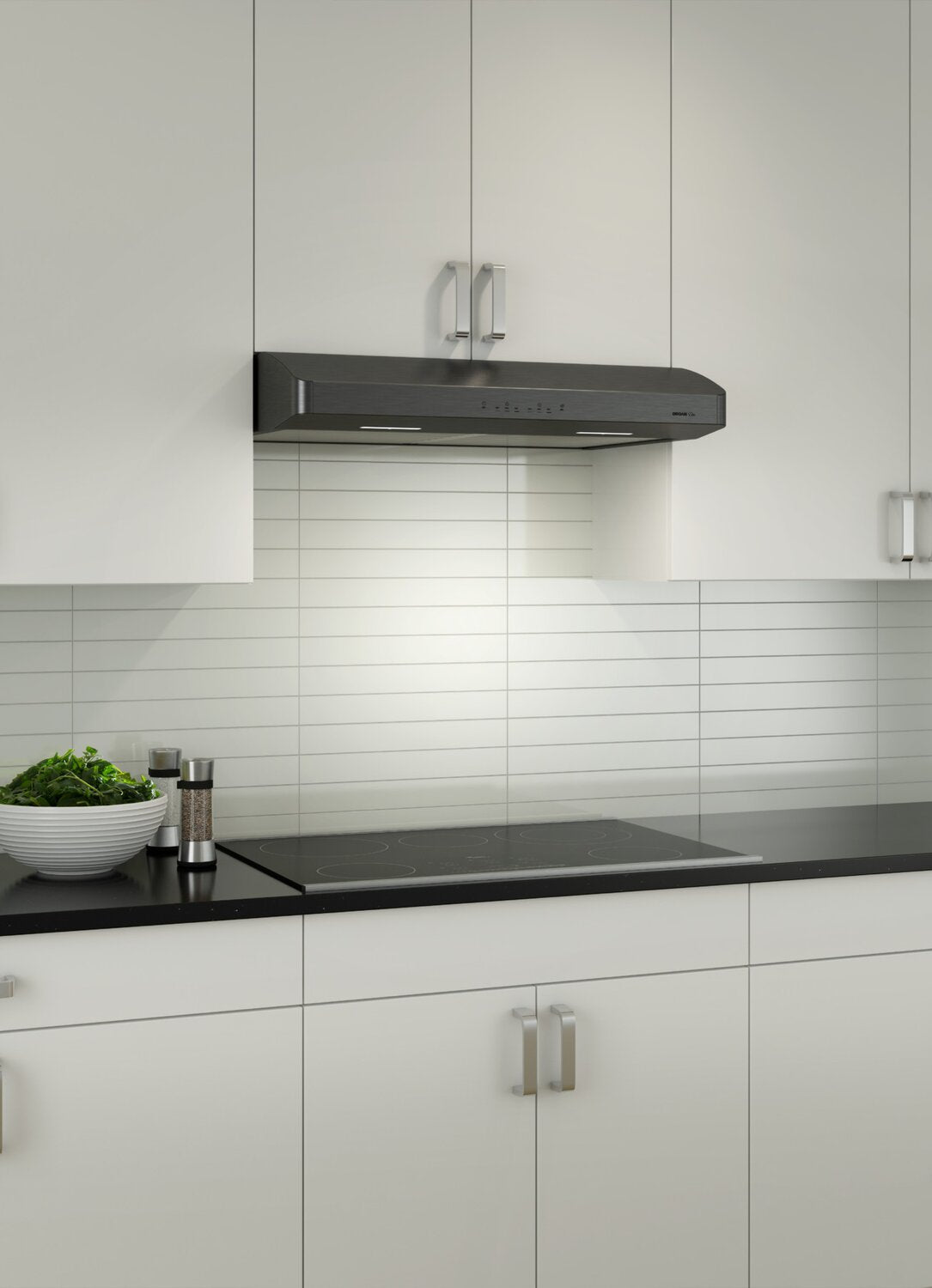

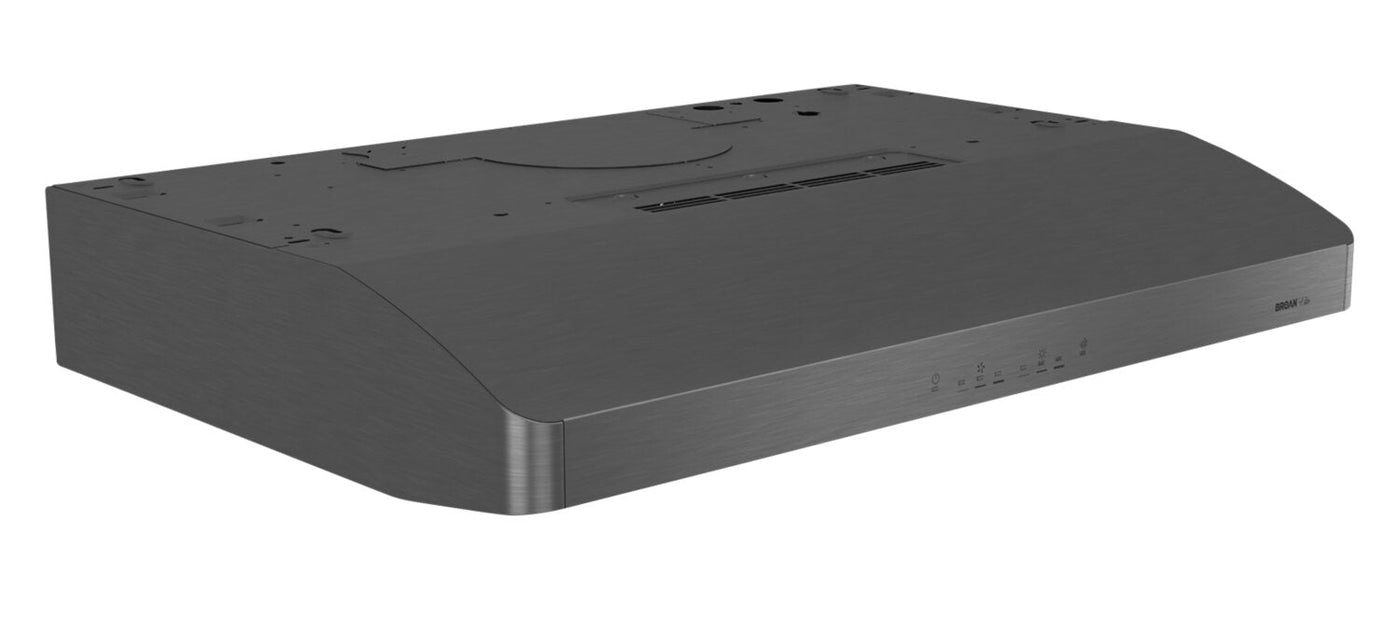

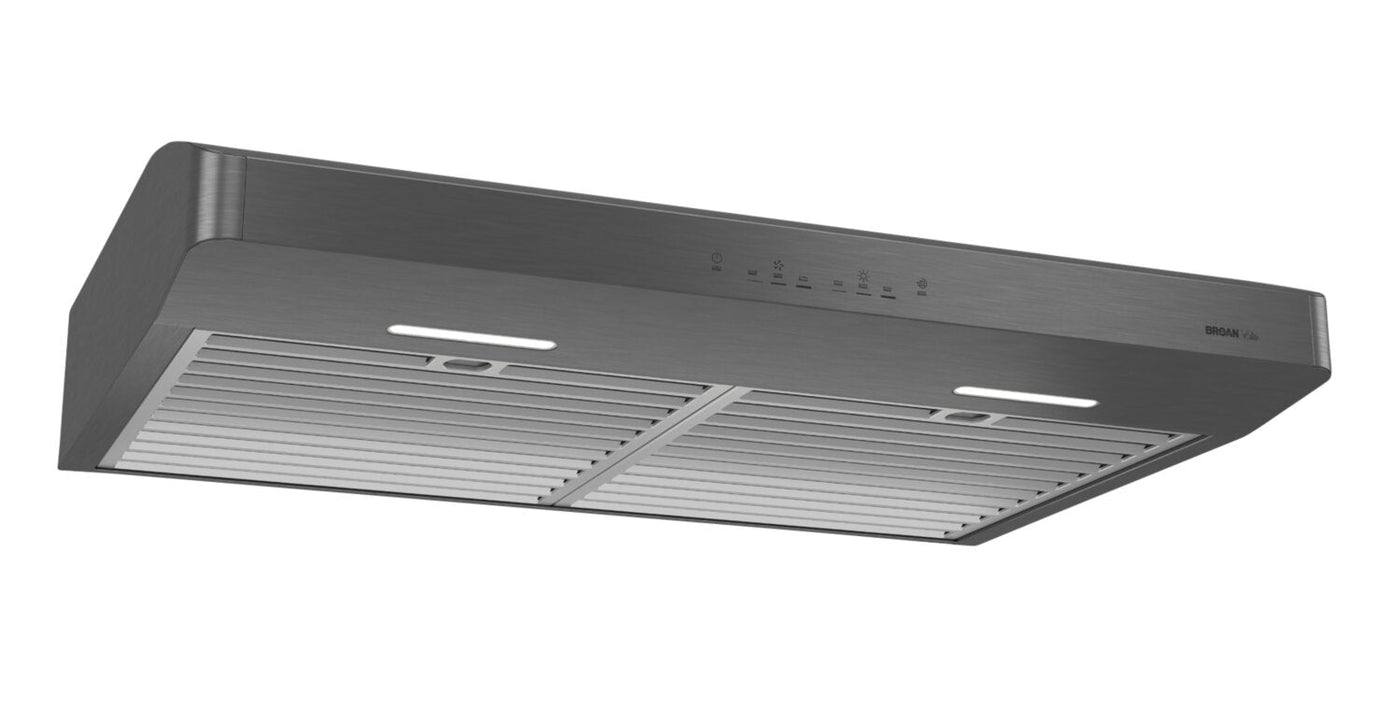

Broan Elite Corteo 30" Under-Cabinet Range Hood - ERLE130BLS

Sku: ERLE130B
$1,199.00 Builder Price

Appliance Removal/Haul Away







Maximum quantity available reached.
Product Description

Broan’s Corteo range hood makes the perfect companion for today’s modern kitchen. Its sleek shape, integrated controls and low operating volume make it an elegant solution to purifying kitchen air. The powerful fan moves up to 650 cubic feet of air per minute, and the hybrid baffle filters gobble up grease to quickly and efficiently clear the kitchen. With an innovative design, advanced technology and unmatched performance, this model is sure to win over even the most demanding users.

Dimensions

Width: 29.88" (75.9 cm)Height: 5" (12.7 cm)Depth: 21" (53.3 cm)

Shipping Dimensions

Width: 35" (88.9 cm)Height: 8" (20.3 cm)Depth: 25" (63.5 cm)

Weight

30.00 lbs (13.6 kg))

Unique Features

Captur™ Ventilation System:
Broan’s exclusive system provides faster smoke, moisture and odour removal to quickly clarify the air.

Quiet Operation:
Running at just 0.3 sones on normal speed, this appliance freshens air without disrupting dinner party conversation or music.

Simple Installation:
Broan’s EZ1 brackets make it easy for single person installation in less than half the time of traditional methods.

Delay Off Feature:
After cooking, ensure air will be cleared without unnecessary running time – the fan will run for 10 minutes before automatically turning off.

High Performance Filters:
Hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filters feature a clean reminder to ensure they will always maintain a high level of capture.

Bright Lighting:
Three-level LED modules illuminate the cooktop surface evenly and are tested in cooking environments to ensure long life without dimming.

Optional ADA-Approved Control:
To meet ADA standards, this hood can be rewired for operation via standard wall switch. (Rewiring kit sold separately.)

General Details

VSN

ERLE130BLS

UPC/GTIN

026715253579

Finish Colour

Black Stainless Steel

Overhead Lighting

3-Level LED

Control Panel

3-Speed Infrared Touch Controls

Exhaust Power (CFM)

650

Ventilation Type

Horizontal/vertical ducting, non-duct capable with use of charcoal filters (sold separately).

Filtration Type

2 Dishwasher-Safe Hybrid Baffle Grease Filters (Charcoal filters for non-ducted installation sold separately)

Installation Requirements

18 – 24 inches required between cooktop and bottom of hood.

Sold Separately

  • Replacement Grease Filters: HPFA430 (Type C5)
  • Non-Ducted Filters: HPF30 (Type Xc)
  • ADA Wiring Kit: HAWRK3
  • Dampers available separately through Broan: BP87Q (adapter plate SR680508), MD6TU, MD8TU, MD10TU

Instruction Manual URL

Instruction Manual

Additional Information

Broan Heat Sentry® system detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation.
