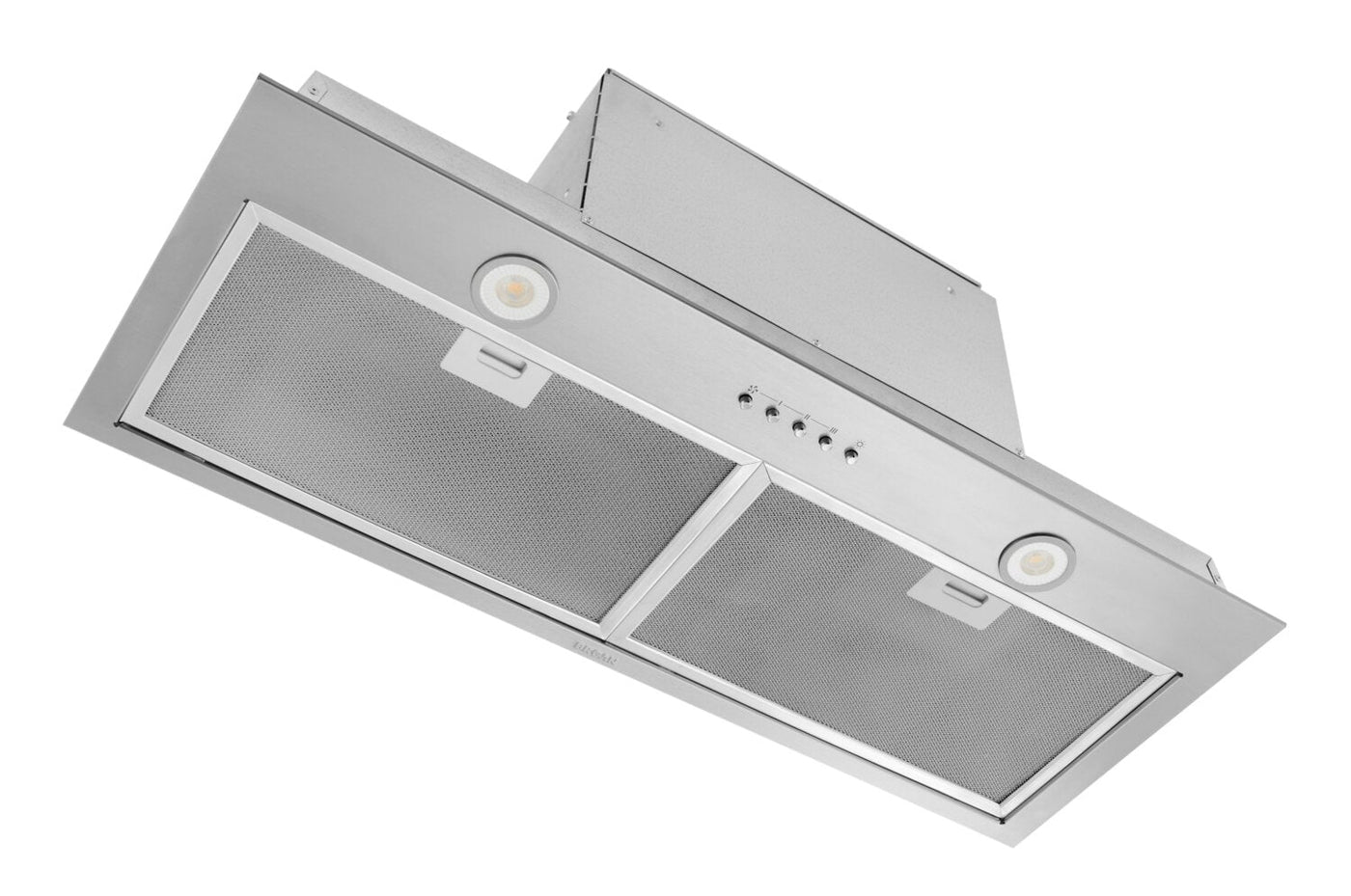

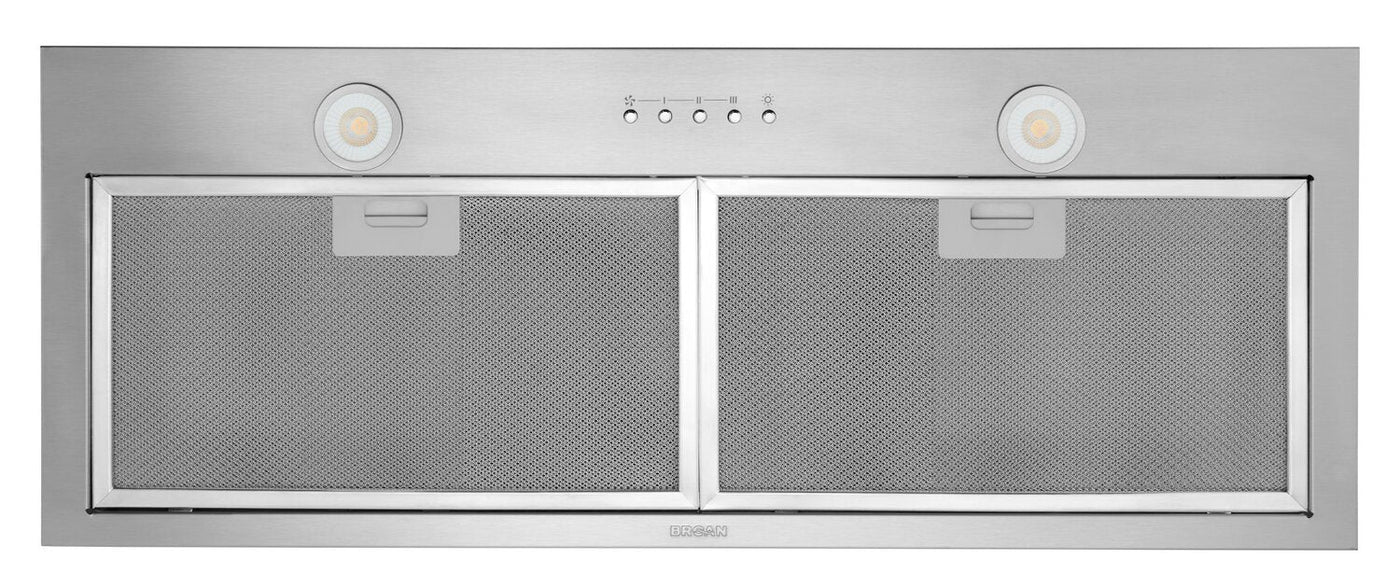

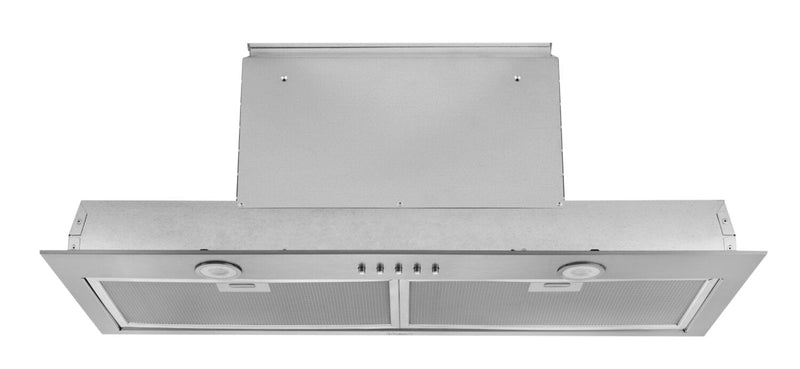

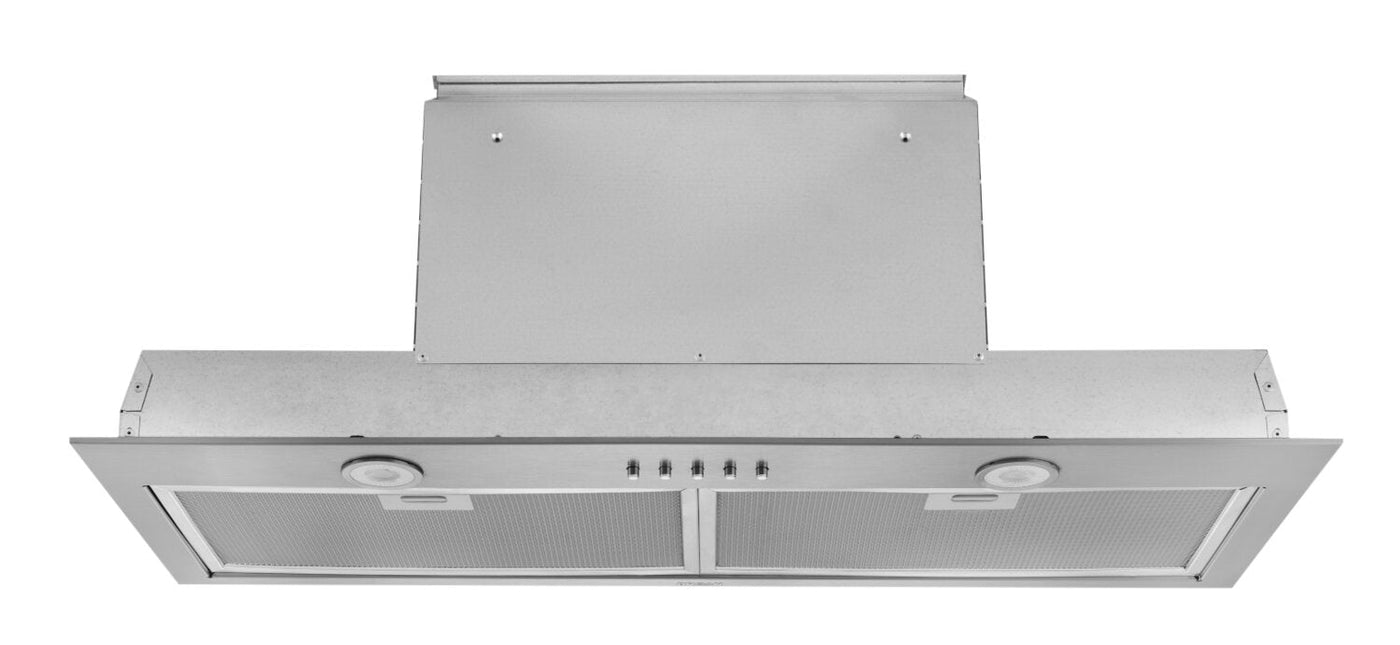

Broan 30" Built-In Power Pack Insert - BBN2303SS

Sku: BBN2303S
$459.00 Builder Price

Appliance Removal/Haul Away







Maximum quantity available reached.
Product Description

Keep your smoke alarm silent with this power pack insert from Broan. With 350 cubic feet per minute (CFM) of venting power and three fan speeds to choose from, smoke and odours are easily cleared away. Plus, Heat Sentry™ automatically sets the speed to high when excessive heat is detected to take the guesswork out of your cooking experience. This insert fits into the underside of your cabinet for a flush appearance, while the smooth stainless steel finish and dishwasher-safe filters make it easy to keep clean.

Dimensions

Width: 29.875" (75.9 cm)Height: 10.56" (26.8 cm)Depth: 11.437" (29.0 cm)

Shipping Dimensions

Width: 32.796" (83.3 cm)Height: 13.65" (34.7 cm)Depth: 15" (38.1 cm)

Weight

23.80 lbs (10.8 kg))

Unique Features

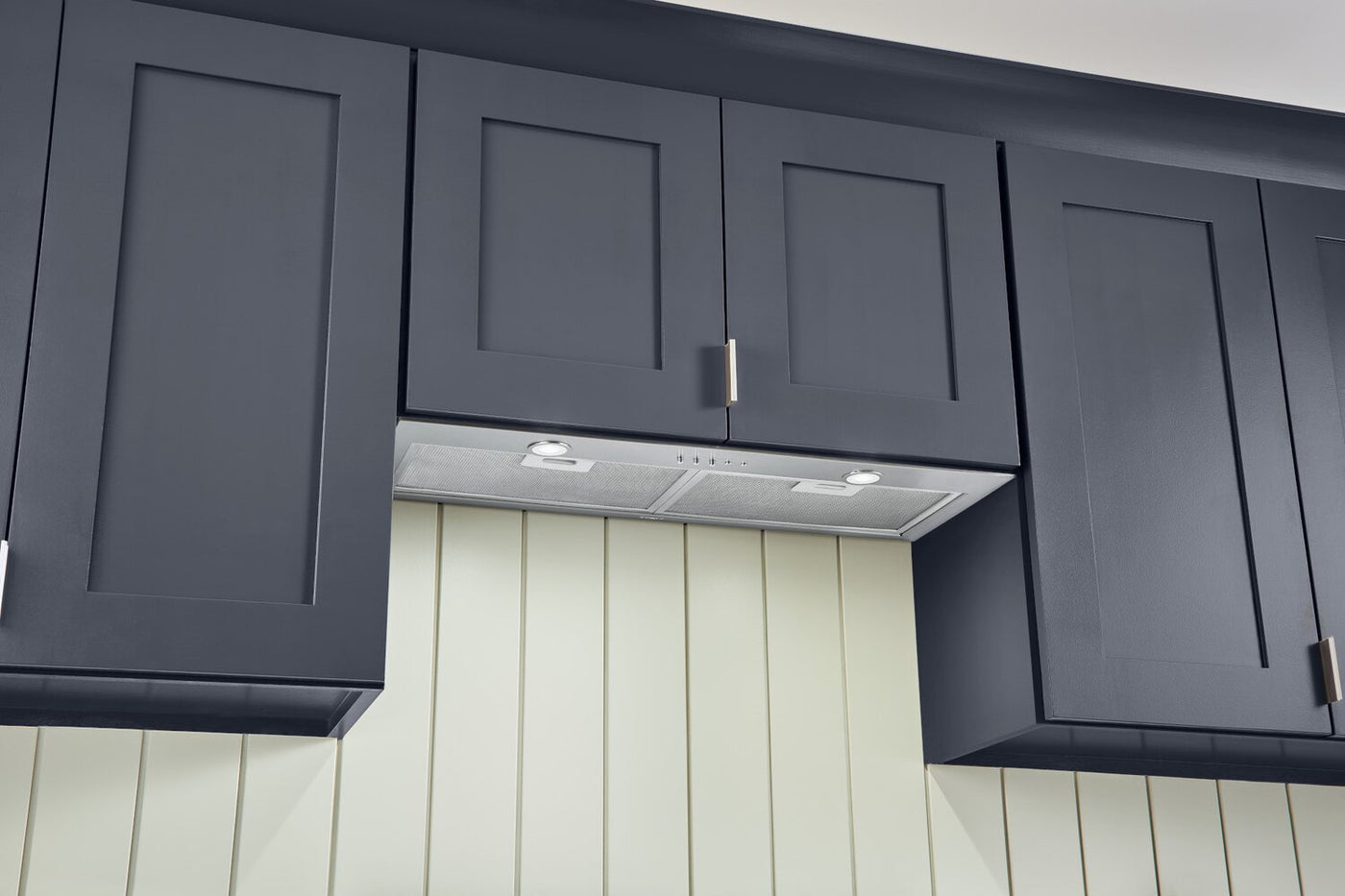

Clean Style:
The integrated, one-piece design of this insert protects the full underside of your cabinetry with a flush appearance and depth adjustability.

Efficient Blower:
With a max blower speed of 350 CFM, three fan levels and a volume of only 1 sone at normal operation, this insert can clear your kitchen air without interrupting your family’s conversations.

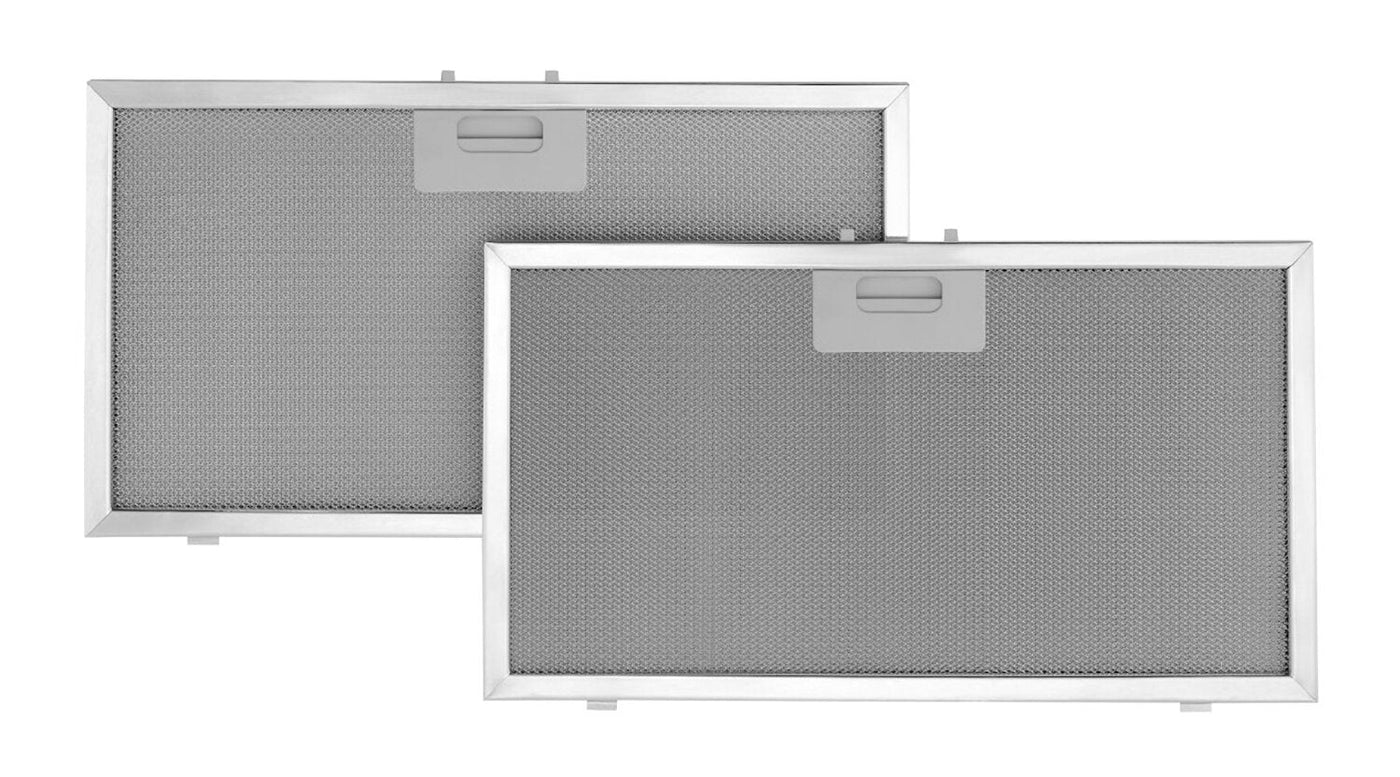

Dishwasher-Safe Filters:
Keep these grease-capturing filters at the top of their game by simply placing them in the dishwasher for a thorough cleaning.

One-Level Lights:
Bright LED lighting evenly illuminates your cooktop and is tested in cooking environments to ensure a long life without dimming.

Heat-Sensing Technology:
Heat Sentry detects excessive heat and adjusts the blower speed to high automatically to keep your environment safe.

Multiple Ducting Options:
Installing this hood is much easier thanks to three ducting options – a 3.25 by 10-inch horizontal or vertical and six-inch round vertical option are possible with the included adapters.

Adjustable Design:
The included liner extension accommodates cabinets up to 13 inches deep, while larger extensions are available (sold separately) to fit cabinets up to 15 inches deep.

General Details

VSN

BBN2303SS

Finish Colour

Stainless Steel

Overhead Lighting

1-Level LED

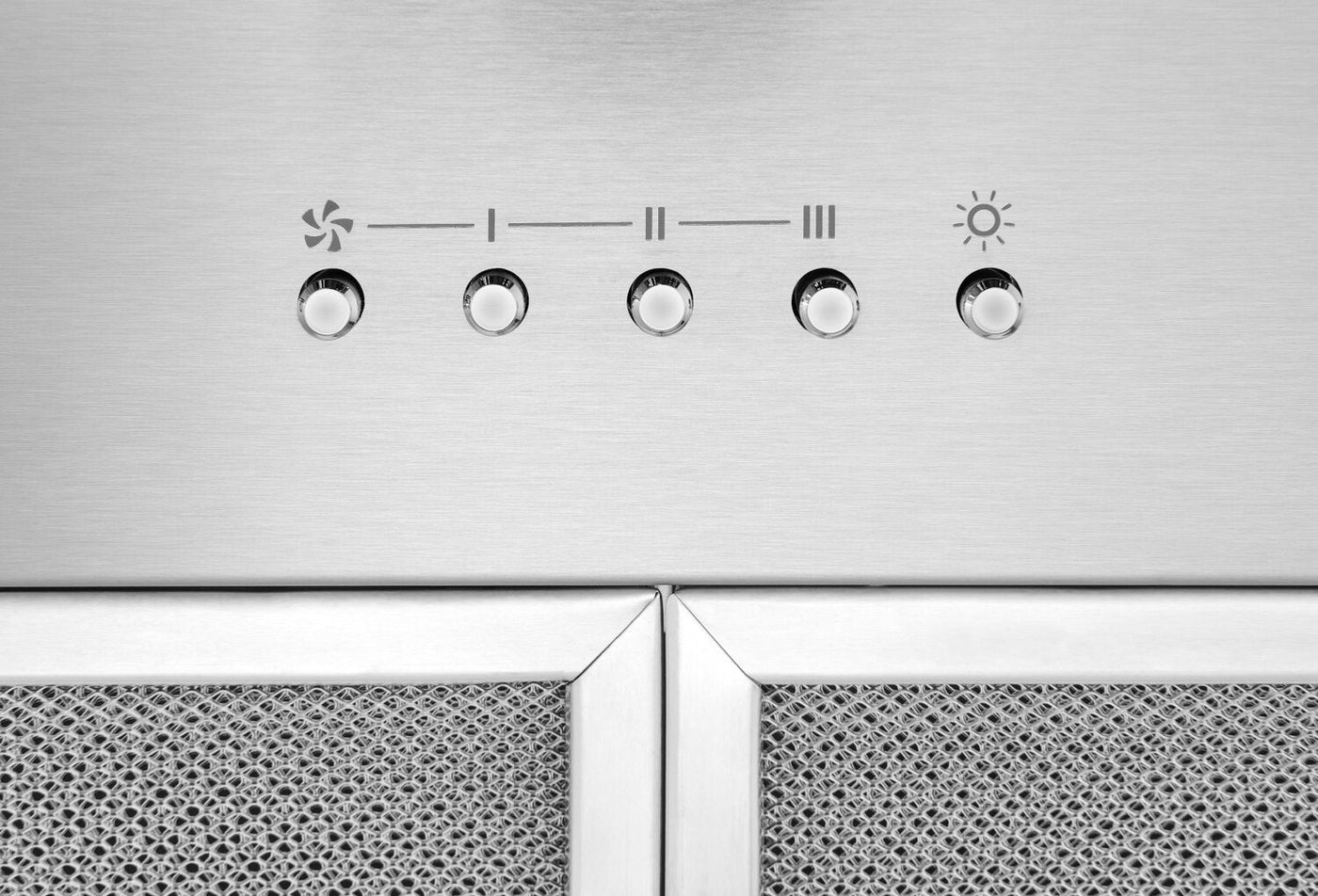

Control Panel

3-Speed Push Buttons

This Product Includes

2 LED Modules, EZ1 Installation Clips

Exhaust Power (CFM)

350

Ventilation Type

Vertical, Horizontal, Recirculating

Filtration Type

Aluminum Mesh Filters

Installation Requirements

Leave 24 to 30 inches between cooktop and bottom of hood.

Sold Separately

  • Replacement Grease Filters: S99010400-130
  • Charcoal Filters for Non-Ducted Installation: S99010464-130
  • 15" Liner Extensions (Set of 4): HADTBN30
  • Non-Ducted Installation Kit: HARKBN30
  • Hybrid Baffle Filters: HPFBN30
  • Make-Up Air Dampers: MD6TU, MD8TU, MD10TU
  • Fresh Air Inlets: 641FA, 643FA, 610FA

Additional Information

Volume (Sones) by Ducting Type:

  • Vertical - Rectangular: Normal: 1 / Medium: 2 / High: 3.5
  • Horizontal - Rectangular: Normal: 1 / Medium: 1.5 / High: 3.5
  • Round - Vertical: Normal: 1 / Medium: 2 / High: 4

Other Dimensions

Duct Outlet Size: 6" Round, 3.25" x 10" Horizontal / Vertical
